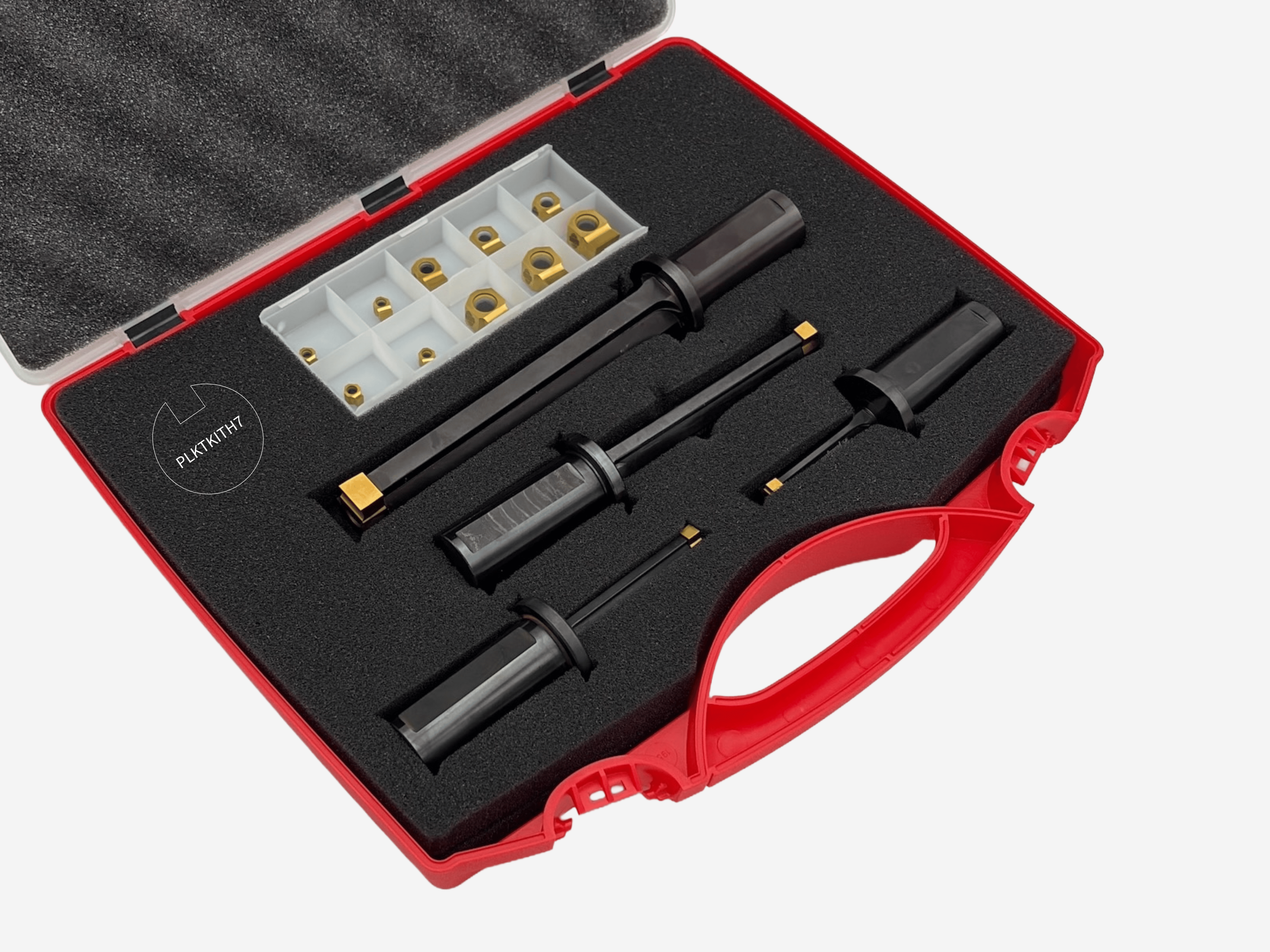

Beschrijving
Houders:
PLKT50 / spie 3
PLKT60 / spie 4-5
PLKT100 / spie 6-8
PLKT140 / spie 10-12
Spiebaan wisselplaten:
PLKIN30 – 3mm (2 stuks)
PLKIN40 – 4mm (2 stuks)
PLKIN50 – 5mm (2 stuks)
PLKIN60 – 6mm (2 stuks) (Ødmin.17mm)
PLKIN80 – 8mm (2 stuks)
PLKIN100 – 10mm (2 stuks)
PLKIN120 – 12mm (2 stuks)
in kunststof koffer.
| Cod. | Dim. Ins. T* | Insert code | 0 Min | L1 | L2 | L3 | L4 | H1 | H2 | H3 | S1 | S2 | Torx Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLKT50 | 3 | PLKIN30 | 9,9 | 50 | 56 | 5 | 111 | 35 | 25 | 9,2 | 90° | 135° | 2,5X10 |
| PLKT60 | 4 5 |
PLKIN40 PLKIN50 |
11,4 11,8 |
60 | 56 | 5 | 121 | 35 | 25 | 10 | 90° | 143.954° | 2,5X10 |
| PLKT100 | 6 8 |
PLKIN60 PLKIN80 |
17,9 18,4 |
100 | 56 | 5 | 161 | 35 | 25 | 14 | 120° | 135° | 4X15 |
| PLKT140 | 10 12 |
PLKIN100 PLKIN120 |
23,8 24,2 |
140 | 56 | 5 | 201 | 35 | 25 | 20 | 120° | 135° | 6X18 |
AIE392-0074 / 1100046738 / PLKTKITH7
